Probabilistic Machine Learning in Bioinformatics

Wouter Boomsma,
University of Copenhagen (DIKU)
Center for Basic Machine Learning Research in Life Science (MLLS)

ProbAI, June 2024

Probabilistic ML in Bioinformatics

		Variational Inference	Deep Generative Models	Diffusion Models	Monte Carlo Methods	Probabilistic Circuits	Gaussian Processes	Causal Inference
Sequence analysis	DNA sequencing
	Sequence assembly
	Genome annotation
	Comput. evol. biology
	Comparative genomics
	Pan genomics
	Genetics of disease
	Analysis of mut. in cancer
Gene and protein expression	Analysis of gene express.
	Analysis of protein expr.
	Analysis of regulation
Analysis of cell. organization	Microscopy image analysis
	Protein localization
	Nucl. organ. of chromatin
Structural bioinformatics	Amino acid sequence
Structural bioinformatics	Homology
Network and syst. biology	Mol. interaction networks
Biodiversity informatics
Others	Literature analysis
	High-thro. image analysis
	High-thro. single-cell data
	Ontologies and data int.

Probabilistic ML in Bioinformatics

		Variational Inference	Deep Generative Models	Diffusion Models	Monte Carlo Methods	Probabilistic Circuits	Gaussian Processes	Causal Inference
Sequence analysis	DNA sequencing
	Sequence assembly
	Genome annotation
	Comput. evol. biology
	Comparative genomics
	Pan genomics
	Genetics of disease
	Analysis of mut. in cancer
Gene and protein expression	Analysis of gene express.
	Analysis of protein expr.
	Analysis of regulation
Analysis of cell. organization	Microscopy image analysis
	Protein localization
	Nucl. organ. of chromatin
Structural bioinformatics	Amino acid sequence
Structural bioinformatics	Homology
Network and syst. biology	Mol. interaction networks
Biodiversity informatics
Others	Literature analysis
	High-thro. image analysis
	High-thro. single-cell data
	Ontologies and data int.

Probabilistic ML in Bioinformatics

		Variational Inference	Deep Generative Models	Diffusion Models	Monte Carlo Methods	Probabilistic Circuits	Gaussian Processes	Causal Inference
Sequence analysis	DNA sequencing
	Sequence assembly
	Genome annotation
	Comput. evol. biology
	Comparative genomics
	Pan genomics
	Genetics of disease
	Analysis of mut. in cancer
Gene and protein expression	Analysis of gene express.
	Analysis of protein expr.
	Analysis of regulation
Analysis of cell. organization	Microscopy image analysis
	Protein localization
	Nucl. organ. of chromatin
Structural bioinformatics	Amino acid sequence
Structural bioinformatics	Homology
Network and syst. biology	Mol. interaction networks
Biodiversity informatics
Others	Literature analysis
	High-thro. image analysis
	High-thro. single-cell data
	Ontologies and data int.

Probabilistic ML in Bioinformatics

		Variational Inference	Deep Generative Models	Diffusion Models	Monte Carlo Methods	Probabilistic Circuits	Gaussian Processes	Causal Inference
Sequence analysis	DNA sequencing
	Sequence assembly
	Genome annotation
	Comput. evol. biology
	Comparative genomics
	Pan genomics
	Genetics of disease
	Analysis of mut. in cancer
Gene and protein expression	Analysis of gene express.
	Analysis of protein expr.
	Analysis of regulation
Analysis of cell. organization	Microscopy image analysis
	Protein localization
	Nucl. organ. of chromatin
Structural bioinformatics	Amino acid sequence
Structural bioinformatics	Homology
Network and syst. biology	Mol. interaction networks
Biodiversity informatics
Others	Literature analysis
	High-thro. image analysis
	High-thro. single-cell data
	Ontologies and data int.

Bio-tidbit 1: Proteins are chains of amino acids

Source: https://biopharmaspec.com/

We represent the 20 amino acids with letters.

LPICPGGAARCQVTLRDLFDRAVVLSHY...

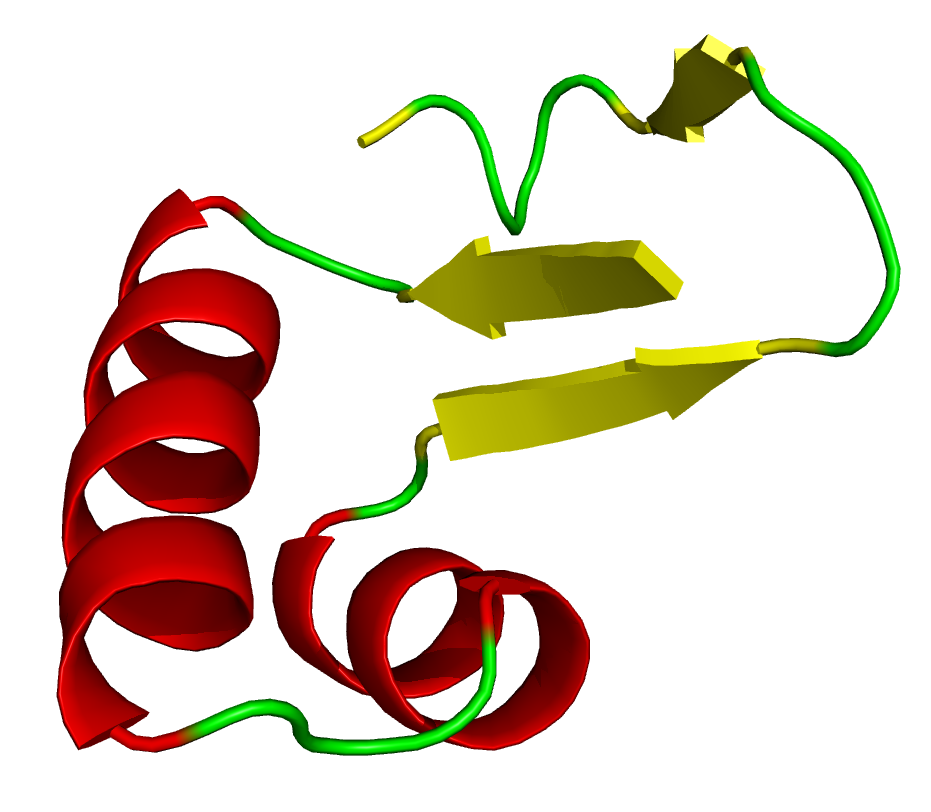

Bio-tidbit 2: sequence encodes structure

CPSIVARSNFNVCRLPGTPEA LCATYTGCIIIPGATCPGDYAN

\(\rightarrow\)

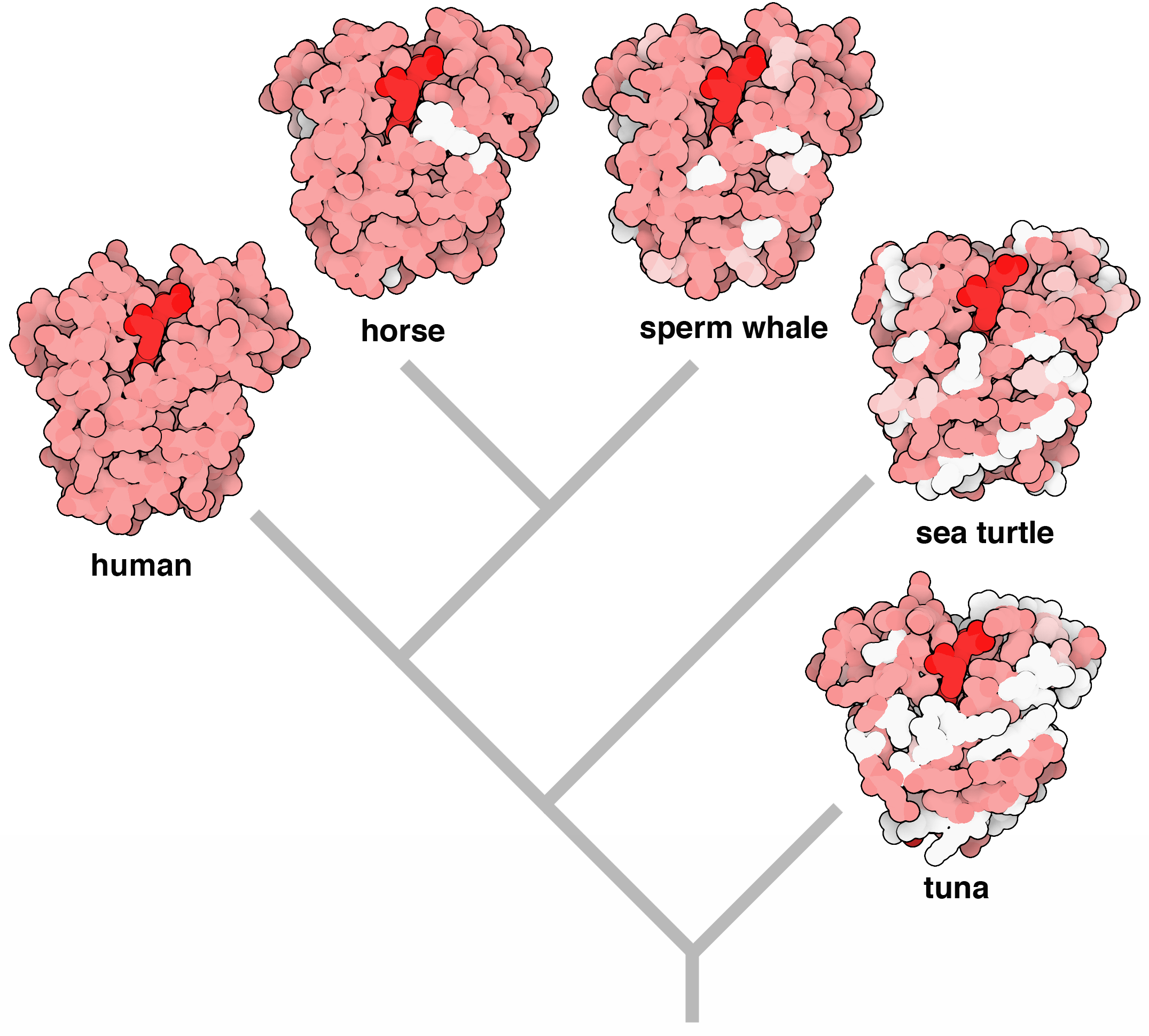

Bio-tidbit 3: related through evolution

Source: PDB: Molecule of the month - Globin evolution

Part 1

Probabilistic modeling of sequences of amino acids

Modelling protein sequences

How do we model the distribution of amino acid sequences observed in nature? \[P(\boldsymbol A) = P(A_1, A_2, A_3, \ldots, A_L)\]

LPICPGGAARCQVTLRDLFDRAVVLSHYIHNLSSEMFSEFDKRYTHGRGFITKAINSCHTSSLATPEDKEQAQQMNQKDFLSLIVSILRSWNEPLYHLVTEVRGMQEAPEAILSKAVEIEEQTKRLLEGMELIVSQVHPETKENEIYPVWSGLPSLQMADEESRLSAYYNLLHCLRRDSHKIDNYLKLLKCRIIHNNNC

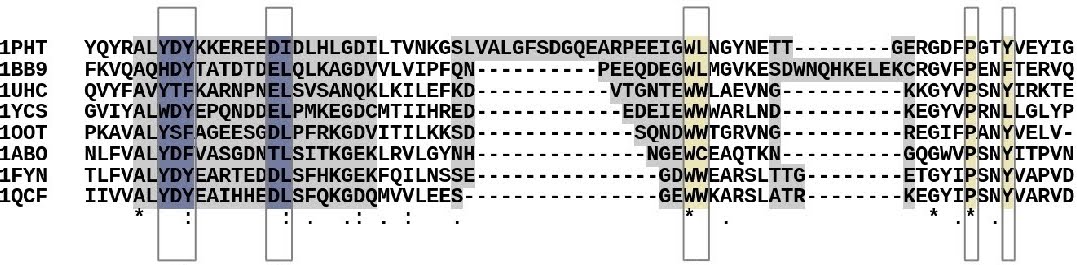

Trick: aligning sequences

Source: https://tcoffee.org

Aligned sequences: factorising by position

Source: https://tcoffee.org

Simple model: assume all positions are independent

\[\begin{align*}P(\boldsymbol A) &= P(A_1, A_2, \ldots, A_L)\\ &\approx P(A_1)P(A_2) \ldots P(A_L)\end{align*}\]

Estimation: simple counting

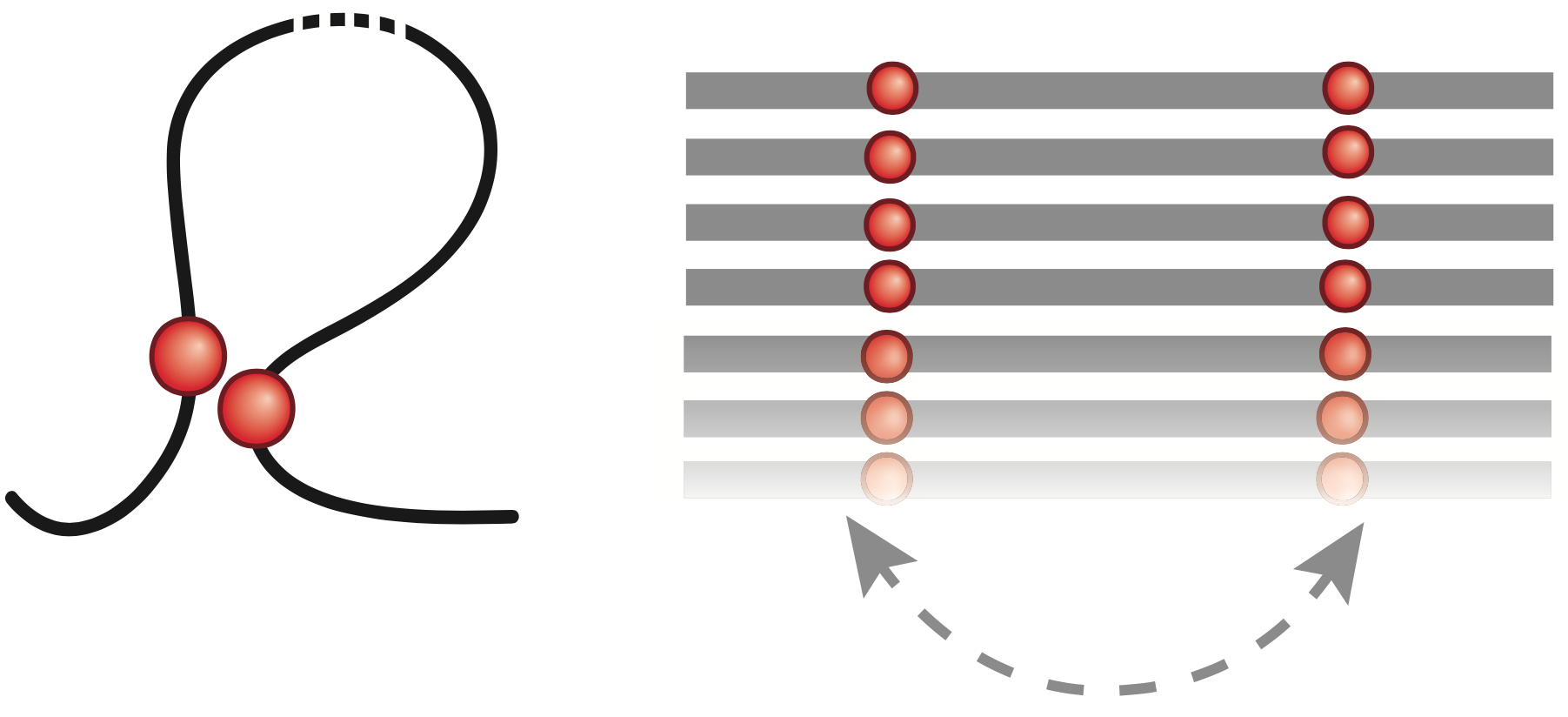

Are correlations between sites important?

Locally?: Yes. correlations between neighboring amino acids encode secondary structure
Globally?

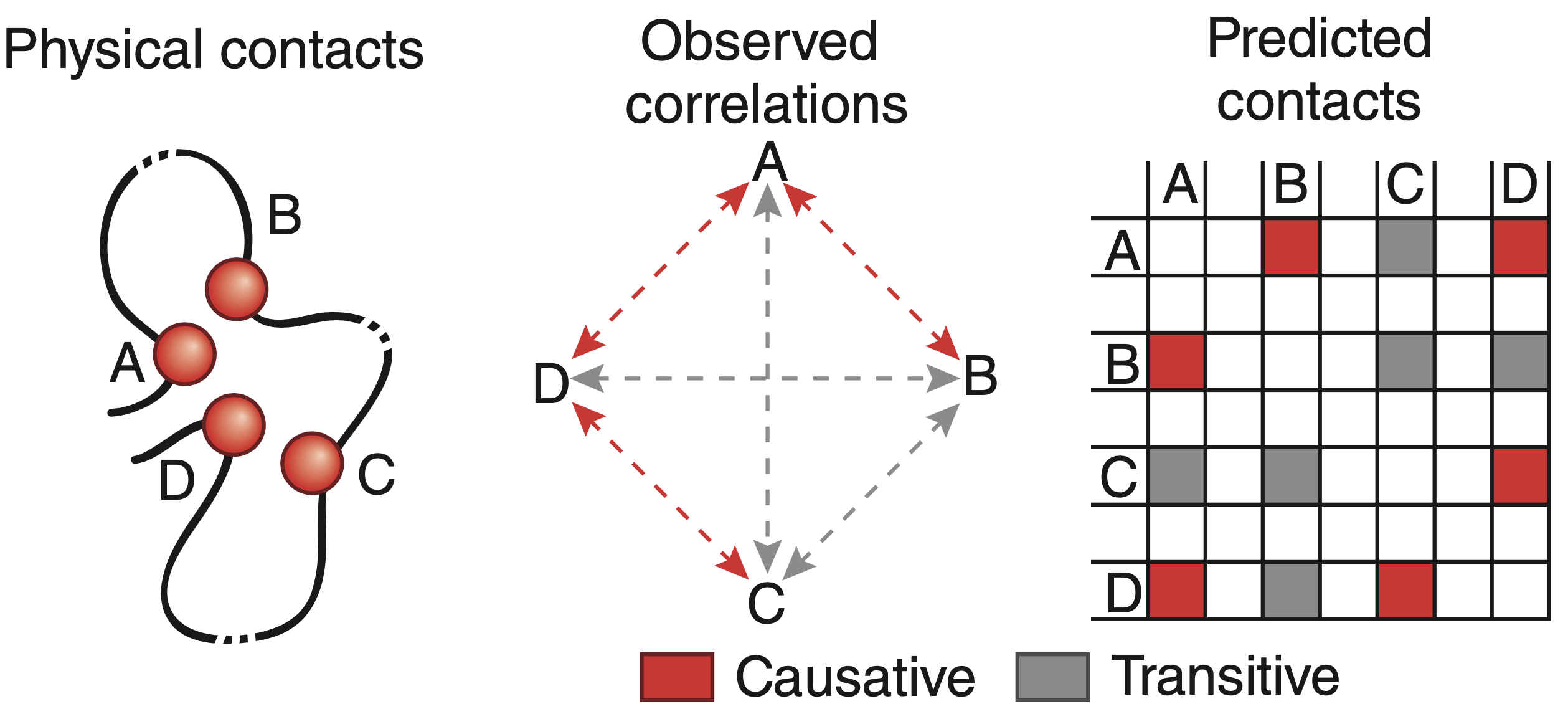

Source: Marks, Hopf, Sanders, Nature biotechnology, 2012

A better probabilistic model

Insist on getting the column-wise frequencies AND the pairwise frequencies right \[\begin{align*}P(\boldsymbol A) &= P(A_1, A_2, \ldots, A_L)\\ &=\frac{1}{Z} \exp \left ( \sum_i^L \phi_i(A_i) + \sum_{i \lt j}^L \psi_{i,j}(A_i, A_j)\right)\end{align*}\] This is an energy-based model.

Problem: Z is intractable:

\(Z = \sum_A \exp \left ( \sum_i^L \phi_i(A_i) + \sum_{i \lt j}^L \psi_{i,j}(A_i, A_j)\right)\)

But can instead be optimized using a pseudo-likehood.

Balakrishnan, Kamisetty, Carbonell, Lee, Langmead, Proteins: Structure, Function, and Bioinformatics, 2011

The importance of good modelling

\[\begin{align*}P(\boldsymbol A) =\frac{1}{Z} \exp \left ( \sum_i^L \phi_i(A_i) + \sum_{i \lt j}^L \psi_{i,j}(A_i, A_j)\right)\end{align*}\]

Source: Marks, Hopf, Sanders, Nature biotechnology, 2012

Can we do even better?

Source: Riesselman, Ingraham, Marks, Nature methods, 2018

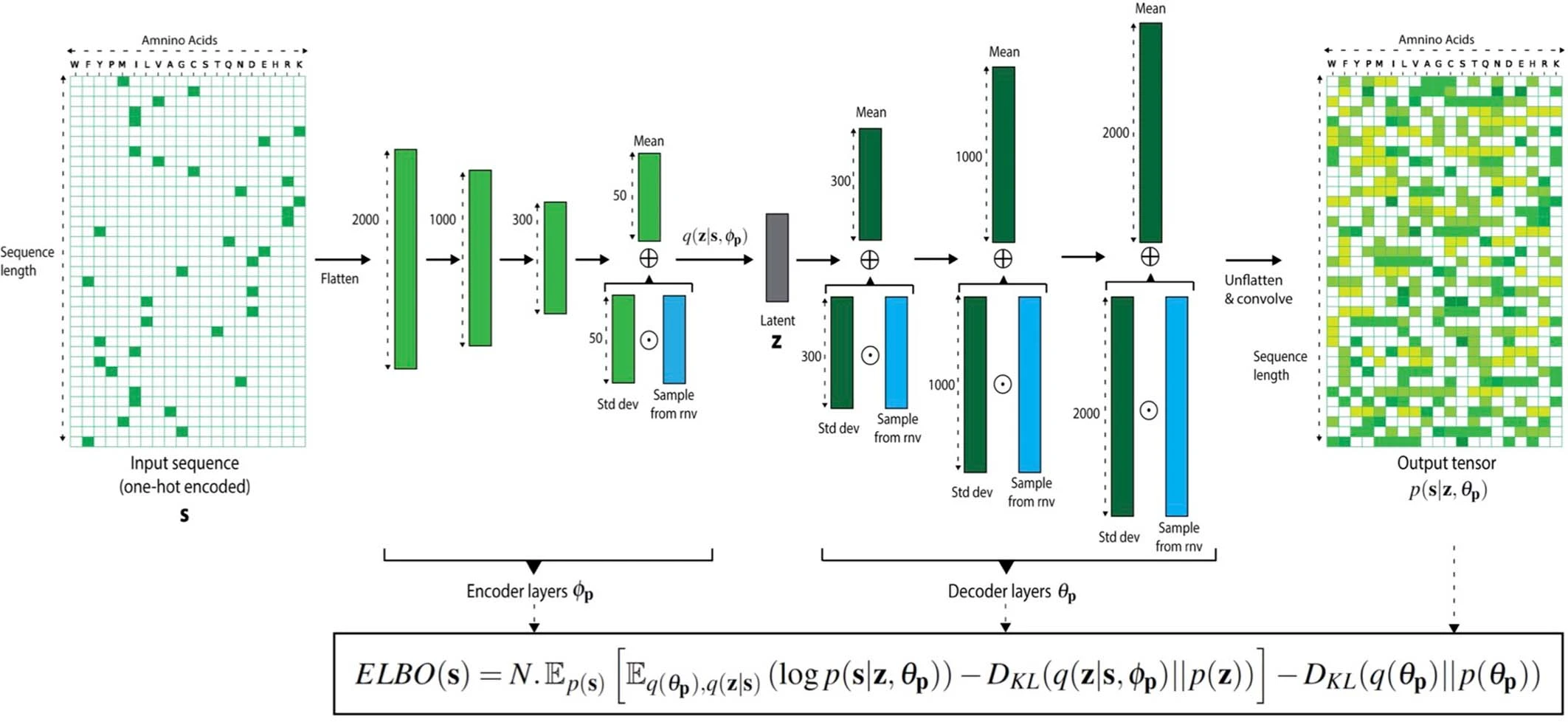

Capturing correlations with a VAE

Source: Frazer, Notin, ..., Gal, Marks, Nature, 2021

Are likelihoods useful?

What does it mean to be a high probability sequence?

High probability \(\approx\) high evolutionary fitness

Does this mean we see a correlation between likelihood and experimentally measured fitness? Yes!

Note the difference in performance between the three models

Source: Riesselman, Ingraham, Marks, Nature methods, 2018

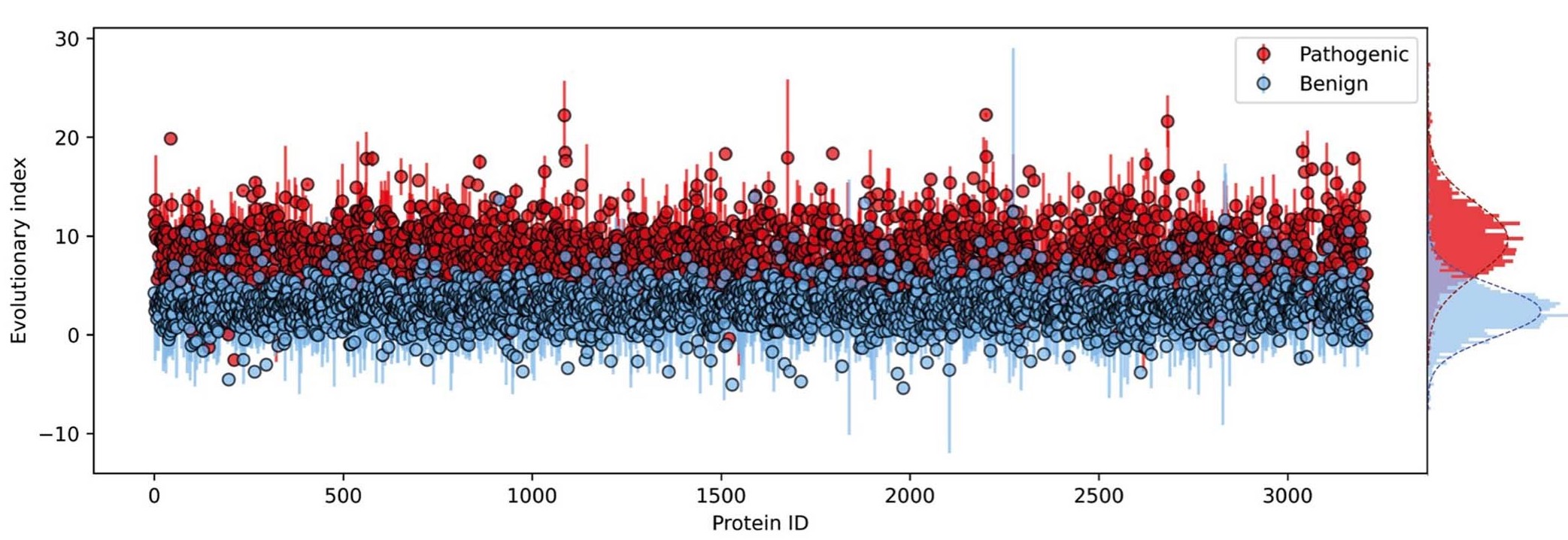

Are likelihoods useful?

Does this also been than we can detect disease-related variants using the likelihood?

Frazer J, Notin P, Dias M, Gomez A, Min JK, Brock K, Gal Y, Marks DS. Nature. 2021 Nov;599(7883):91-5.

Perspective 1: Hierarchical models (1)

The different positions in a protein are conditionally independent on the latent variable \(z\).

\[\begin{align*}P(\boldsymbol A) &= \int_Z P(A_1|Z)P(A_2|Z) \ldots P(A_L|Z) P(Z) dZ\end{align*}\]

This means we are asking a single latent variable to capture all relevant covariances. That's asking a lot!

Perspective 1: Hierarchical models (2)

Source: Marloes Arts

Hierarchical VAEs: multiple latent states to facilitate modeling of complex correlations.

How deep can we go?

\(\Rightarrow\) Diffusion models

Exciting recent results:

Alamdari, Thakkar, van den Berg, Lu, Fusi, Amini, Yang, Protein generation with evolutionary diffusion: sequence is all you need. bioRxiv, 2023

Perspective 2: the Path to AlphaFold

Senior, ..., Hassabis, Improved protein structure prediction using potentials from deep learning, Nature, 2020.

Perspective 2: The Path to AlphaFold

Jumper, ..., Hassabis, Highly accurate protein structure prediction with AlphaFold, Nature, 2021.

Part 2

Optimization of proteins

Can we use prob. ML to improve proteins?

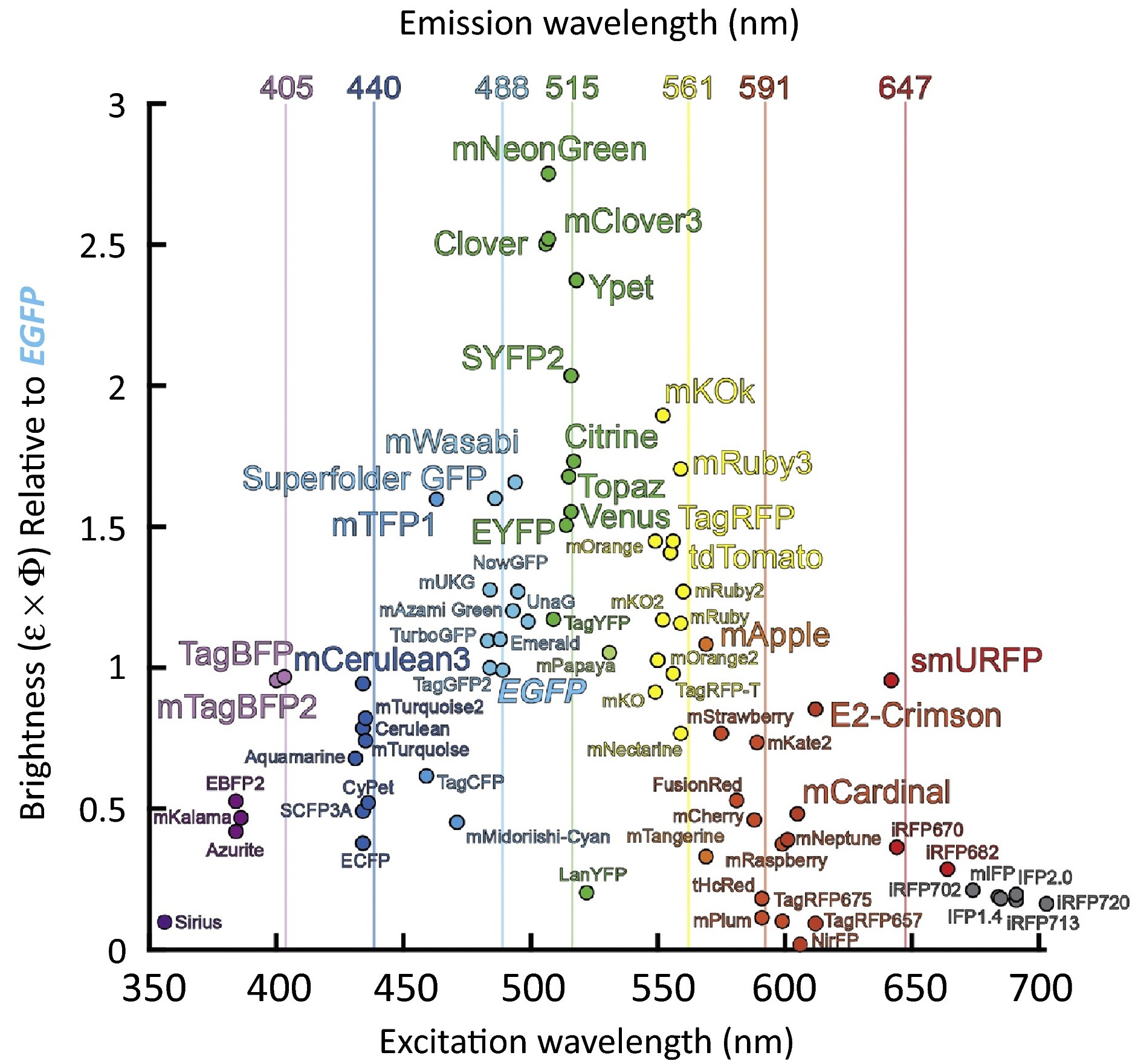

Motivating example: Green Fluorescent Protein (GFP)

Source: Rodriguez, Campbell, ..., Tsien, Trends in biochemical sciences, 2017
Hunt, Scherrer, Ferrari, Matz. PloS one, 2010

Protein engineering: experimental setup

Yang, Wu, Arnold, Nature Methods, 2019

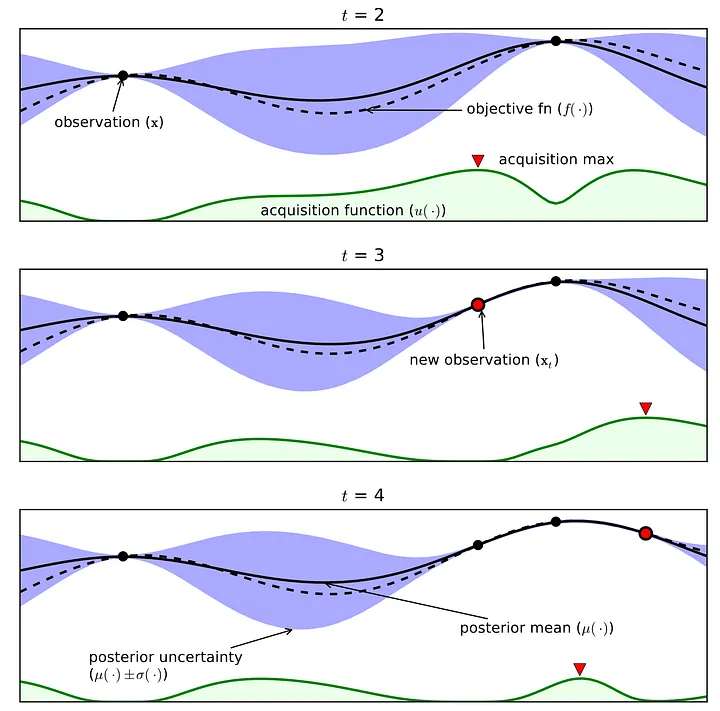

Bayesian Optimization

We thus need a good way to model distributions over functions.

Source: https://towardsdatascience.com/shallow-understanding-on-bayesian-optimization-324b6c1f7083

Gaussian Processes

Source: http://smlbook.org/GP/. Code written by Johan Wågberg, 2019.

Challenges for the protein case

We are not in 1D.

Depending on the representation, we often have hundreds of dimensions.

Questions:

Can we fit surrogate models with reasonable levels of accuracy?
Do we get reasonable uncertainties?

Trying on real data: Illustrative case

Trying on real data: The problem

Commonly employed strategy:

Run first batch of experiments
Construct next batch from combinations of "greatest hits" from batch 1
...

In our case, this is a fatal source of distribution shift.

Trying on real data: Not looking so great

Observations:

Large fluctuations from week to week.
No "learning" over the course of the campaign.

Trying on real data: Uncertainty?

Uncertainty estimates are also not very reasonable

Designing a new kernel

Composite kernel: \[\begin{align*}k(\mathbf{x},\mathbf{x'}) = \pi k_{\text{struct}}(\mathbf{x},\mathbf{x'}) + (1-\pi)k_{\text{seq}}(\mathbf{x},\mathbf{x'})\end{align*} \]

where

\[k_{\text{struct}}(\mathbf{x},\mathbf{x'}) = \sum_{i \in M} \sum_{j \in M'}\lambda k_H(\mathbf{x^i},\mathbf{x'^j})k_p(\mathbf{x^i},\mathbf{x'^j})k_d(\mathbf{x^i},\mathbf{x'^j})\]

Groth, Kerrn, Olsen, Salomon, Boomsma, Kermut: Composite kernel regression for protein variant effects. bioRxiv, 2024

Designing a new kernel: SOTA performance

Groth, Kerrn, Olsen, Salomon, Boomsma, Kermut: Composite kernel regression for protein variant effects. bioRxiv, 2024

Designing a new kernel: Reasonable uncertainties

Groth, Kerrn, Olsen, Salomon, Boomsma, Kermut: Composite kernel regression for protein variant effects. bioRxiv, 2024

Take aways

Overall:

The topics taught here are relevant 😊

Part 1:

Modeling choices are important. We are still making progress in decade old problems.

Part 2:

Gaussian Processes are useful - not only academically interesting.
Bayesian Optimization is a compelling idea - but requires good surrogates, which can be difficult in high dimensions
